Details:
- WarrantyN/A

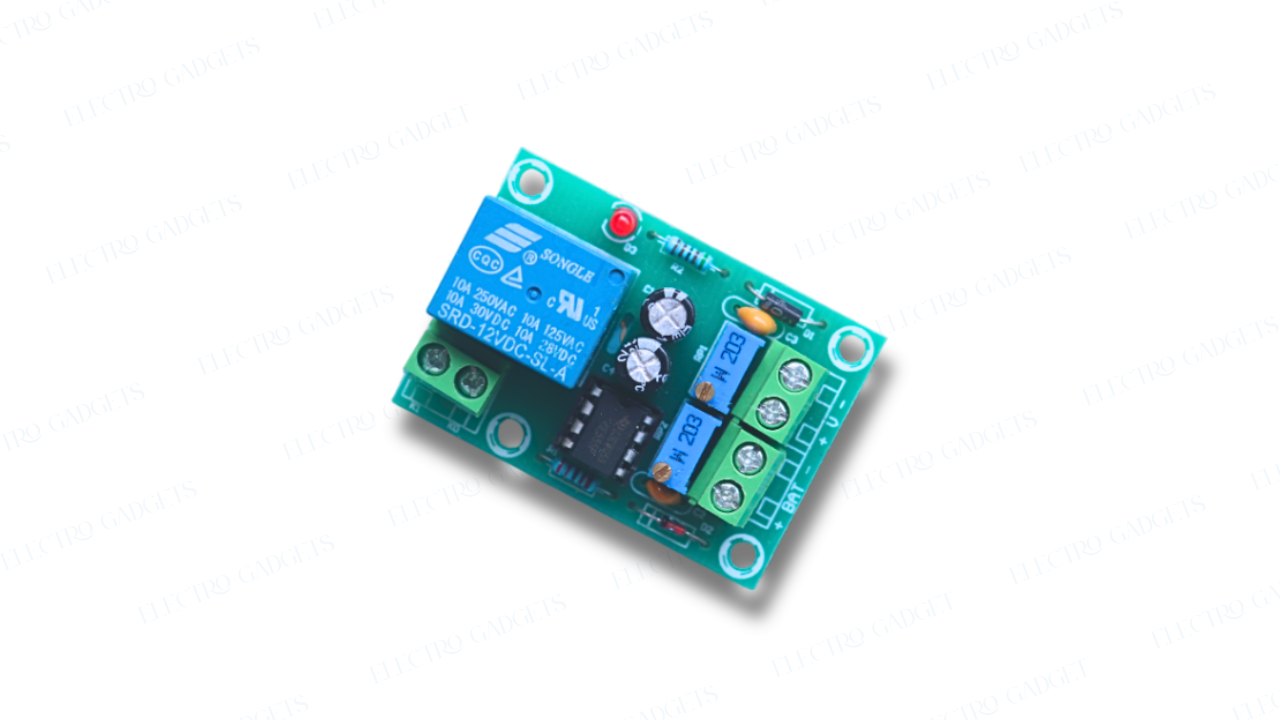

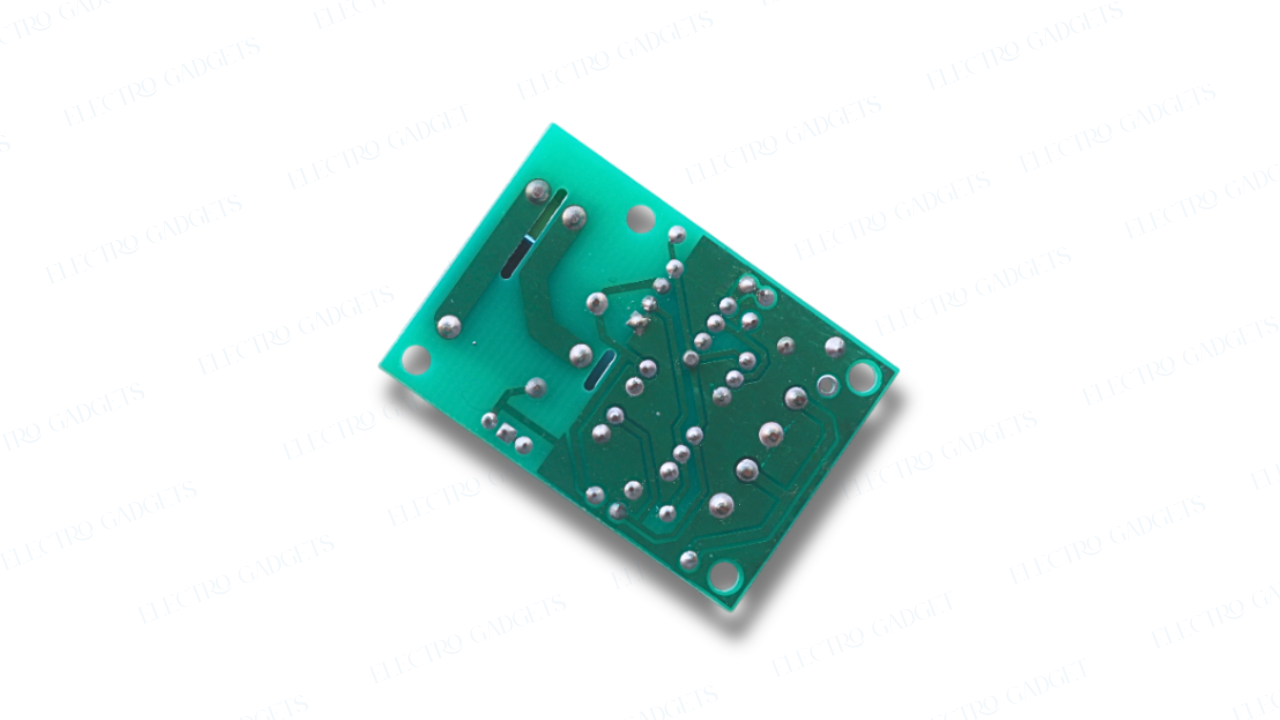

XH-M601 Power Regulator Battery Charging Control Board (12V Intelligent Auto Charger)
The XH-M601 is a smart 12V battery charging controller designed to automate the charging process for lead-acid storage batteries. With its adjustable voltage settings and precision DC voltmeter, it ensures reliable and safe battery charging while protecting against overcharging.
Its auto-cut feature uses relay control to automatically start charging when the voltage drops below a set threshold (12.4V) and stop charging when it reaches 14.8V, preserving battery health. Two potentiometers (RP1 and RP2) allow you to fine-tune these voltage values for specific requirements.
Ideal for DIY battery packs, UPS, and other 12V charging applications, this compact module simplifies power management in small projects and home setups.
⚙️ Specifications:
- Model: XH-M601
- Power Supply Voltage: 13.8V – 14.8V
- Relay Operating Voltage: 12.4V
- Relay Disconnect Voltage: 14.8V
- Voltage Tolerance: ±0.1V
- Voltage Detection Method: DC Voltmeter
- Battery Compatibility: 12V Storage Battery
- Adjustment Method: RP1 & RP2 Potentiometers
- Module Size: 50 x 32 x 18mm
- Use: Automatic battery charging and stopping
⚠️ Note:
- Suitable only for 12V lead-acid batteries
- Not waterproof – avoid moisture during operation
- Allow 5% variation due to manual measurements
📦 Shipment Dimensions:
- Size: 6 cm × 4 cm × 3 cm
- Weight: Approx. 25g
📦 ডেলিভারি চার্জ: ১২০ টাকা (সারা বাংলাদেশে হোম ডেলিভারি )
💸 অর্ডার কনফার্ম করতে ১০০ টাকা অগ্রিম দিতে হবে
🔗 Facebook Link -
⏳ স্টক সীমিত – তাই দেরি না করে এখনই অর্ডার করুন!
📲 অর্ডার এবং তথ্যের জন্য, আমাদের WhatsApp নম্বরে যোগাযোগ করুন: 01644-359557
